I got the kit, had it assembled and done in around 3 hours. It would have been faster but I took my time and took the photos for this instruction tutorial. Even still, the surface mount USB chip was definitely the most challenging part of the assembly. I would recommend that most just pay the extra $5 to get the vendor-added USB chip option along with the kit.
My plan for this controller is to use it to help me experiment with and create a rocket telemetry and ejection controller for my high powered rocket hobby.

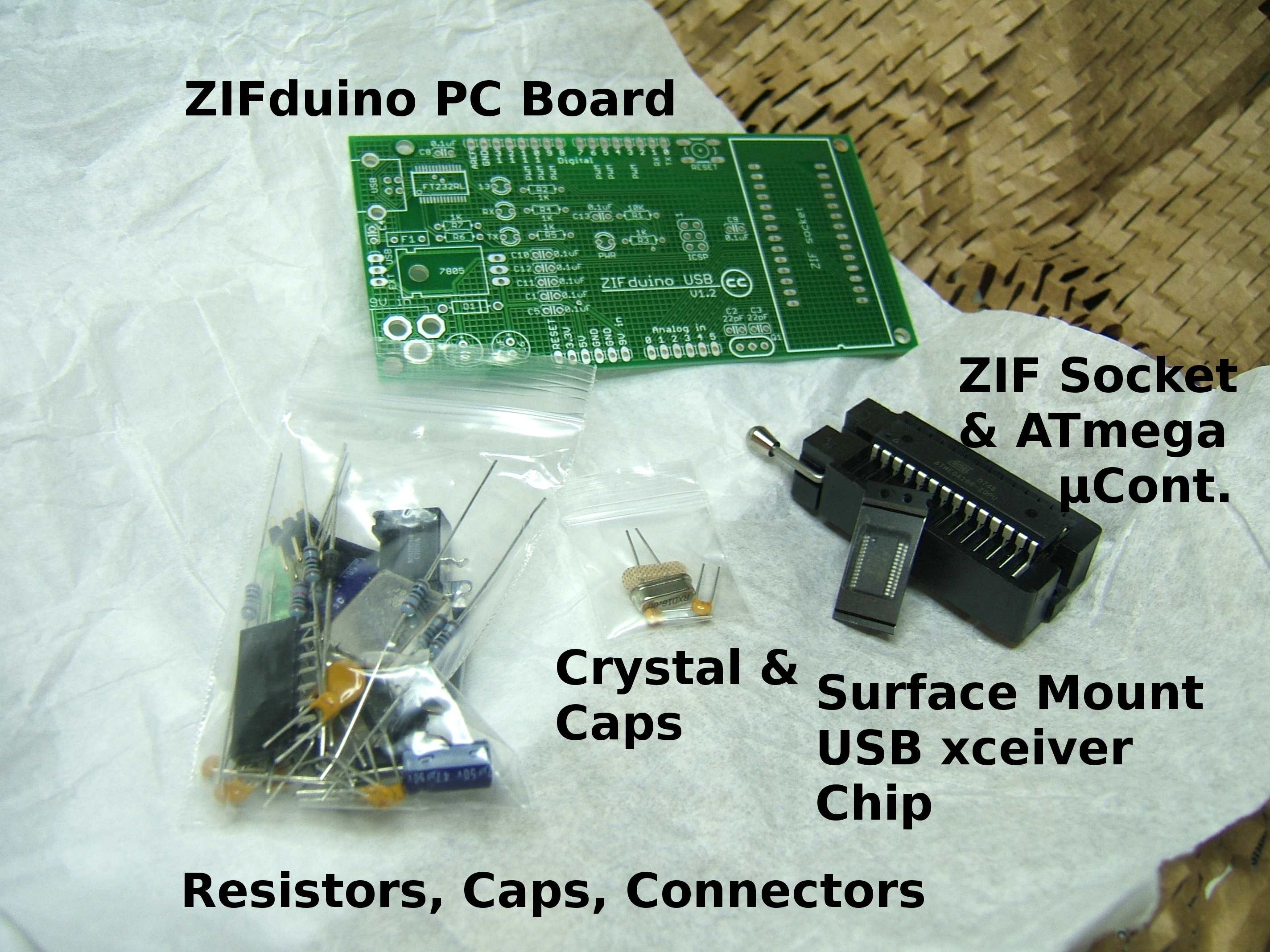

The parts of the ZIFduino kit.
|

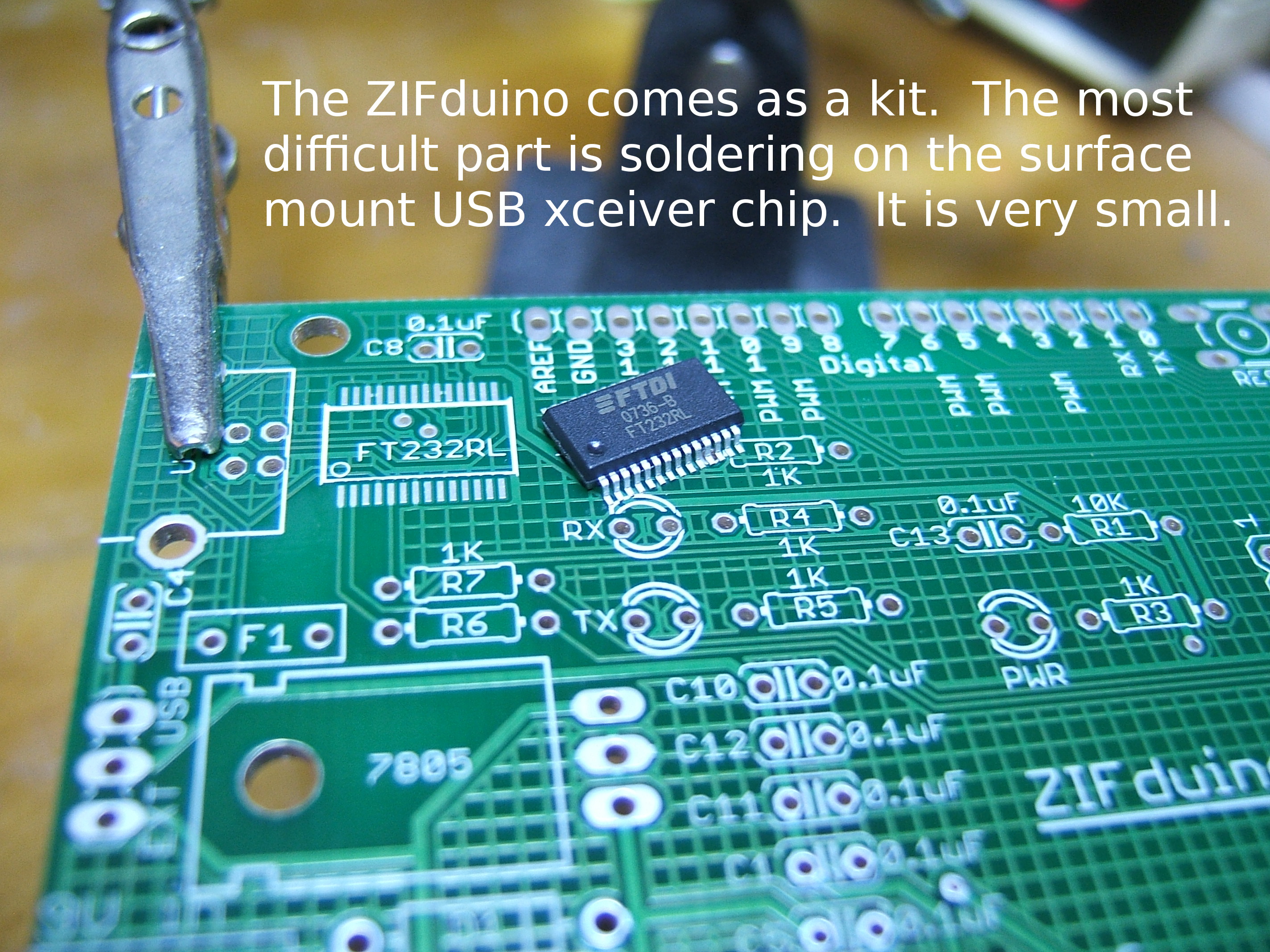

The surface mount USB chip.
|

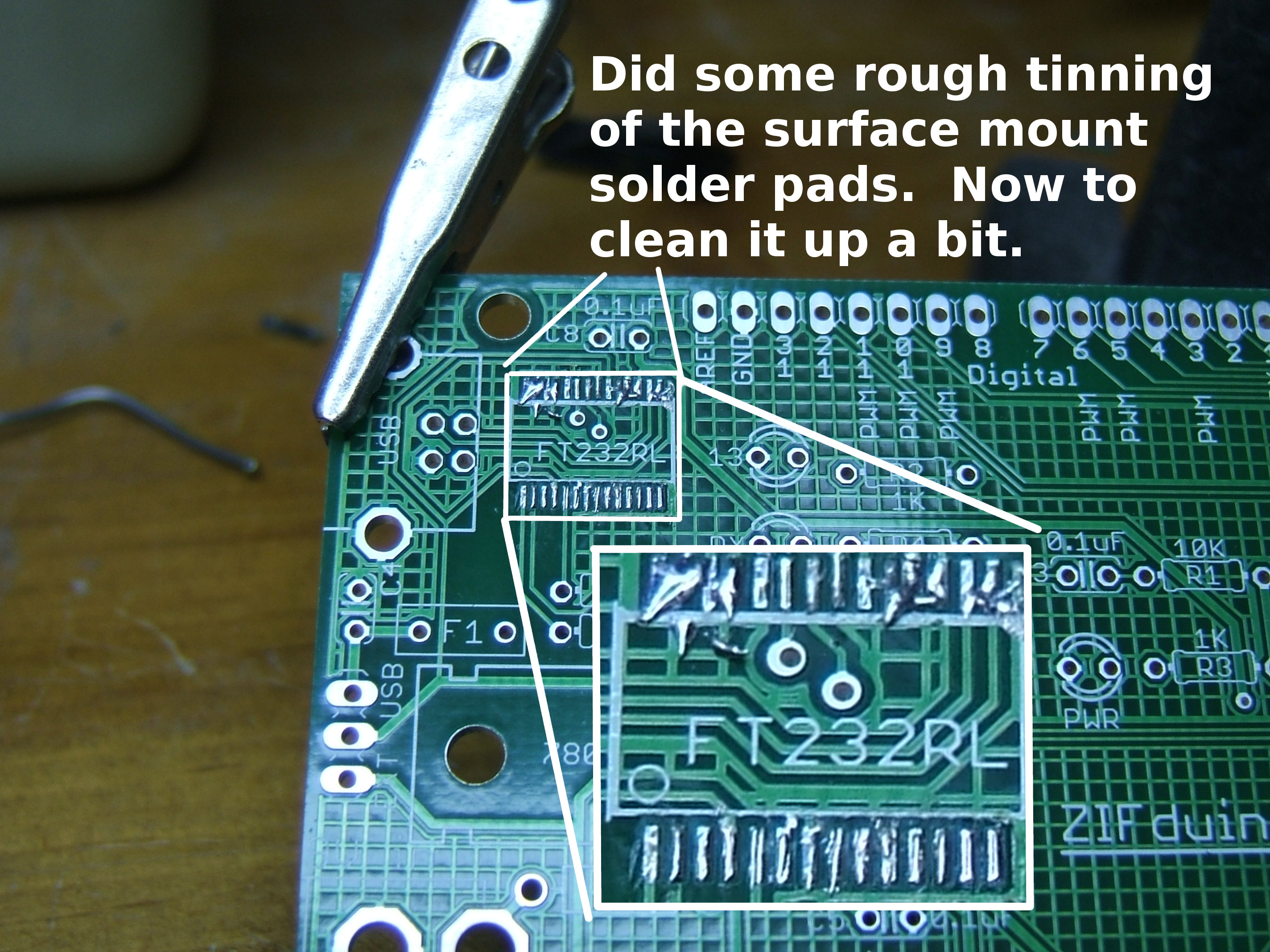

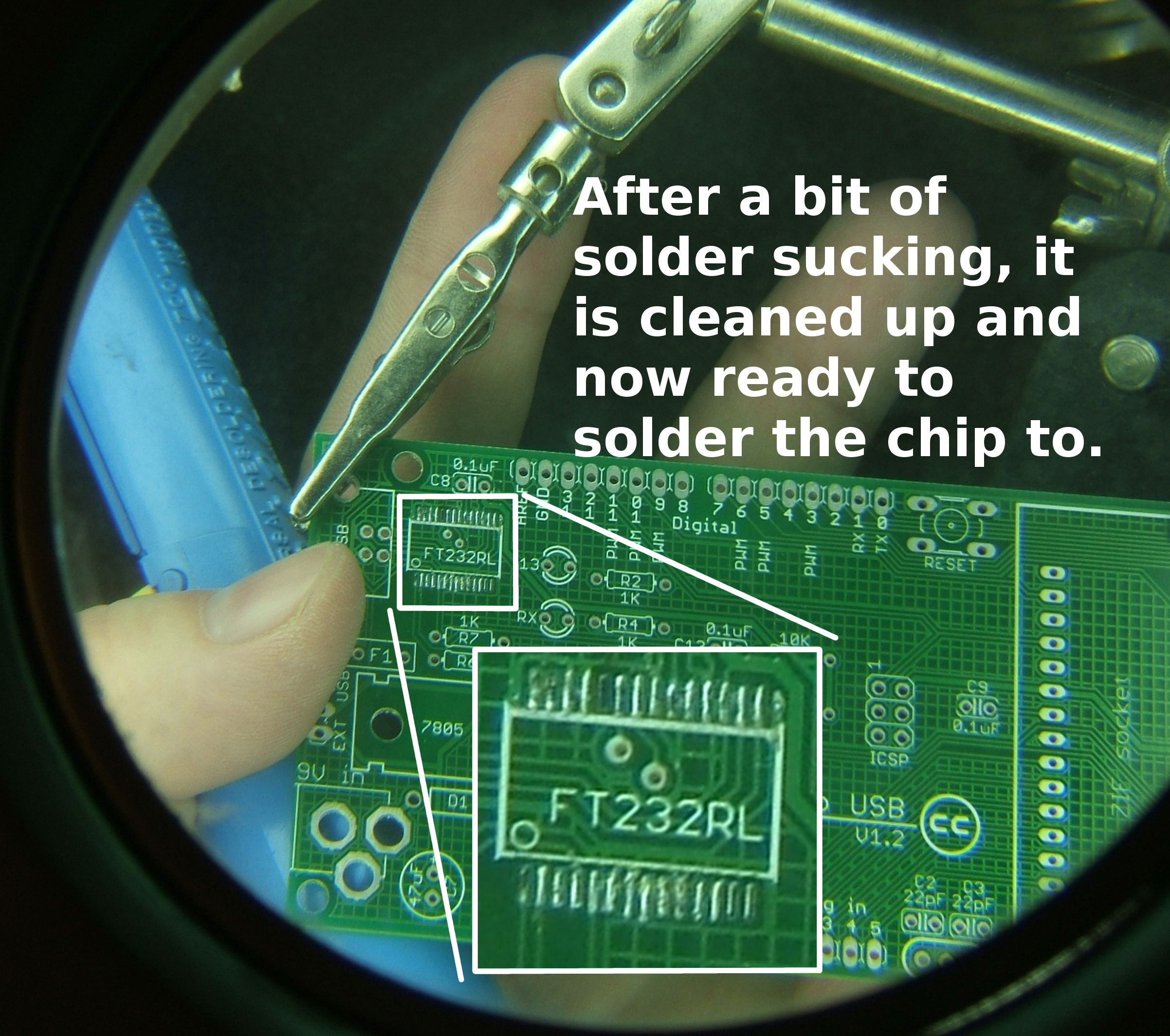

Tinning the solder pads for the USB chip.
|
Cleaning up the tinning.
|
Testing for solder bridges & shorts.
|

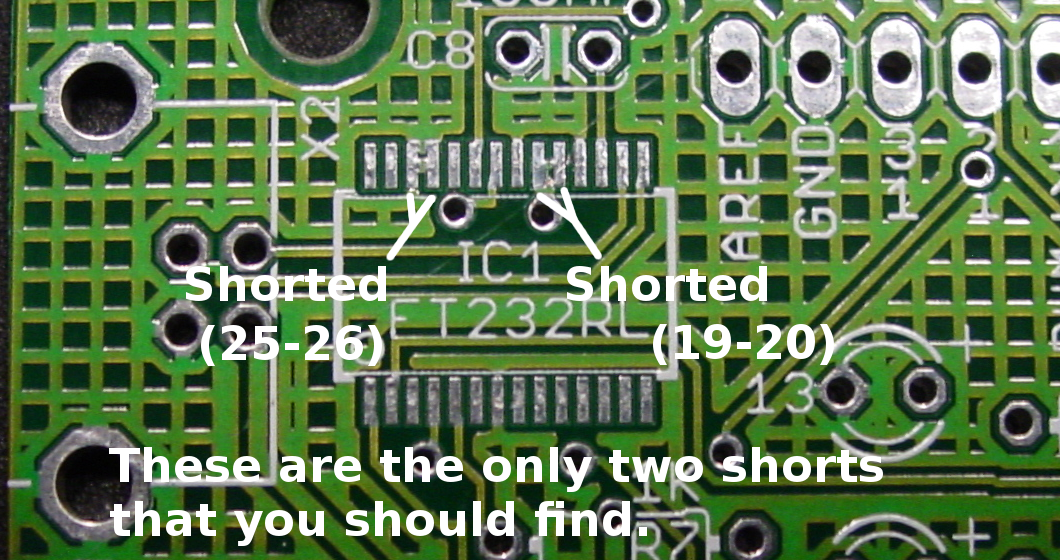

Two intentional shorts.
|
Tinning the pins of the USB chip.
|

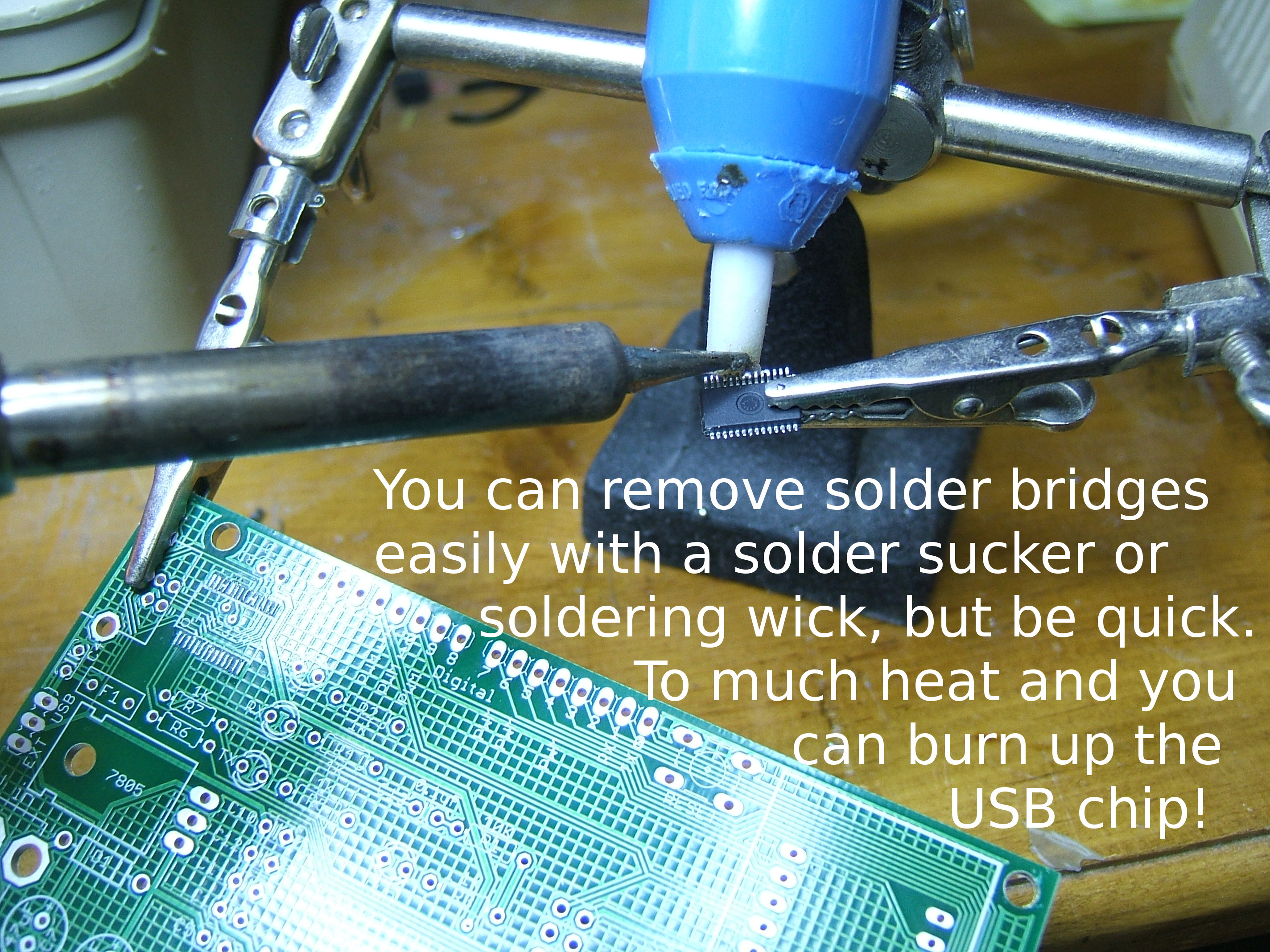

Cleaning up a solder bridge on the pins of the USB chip.
|

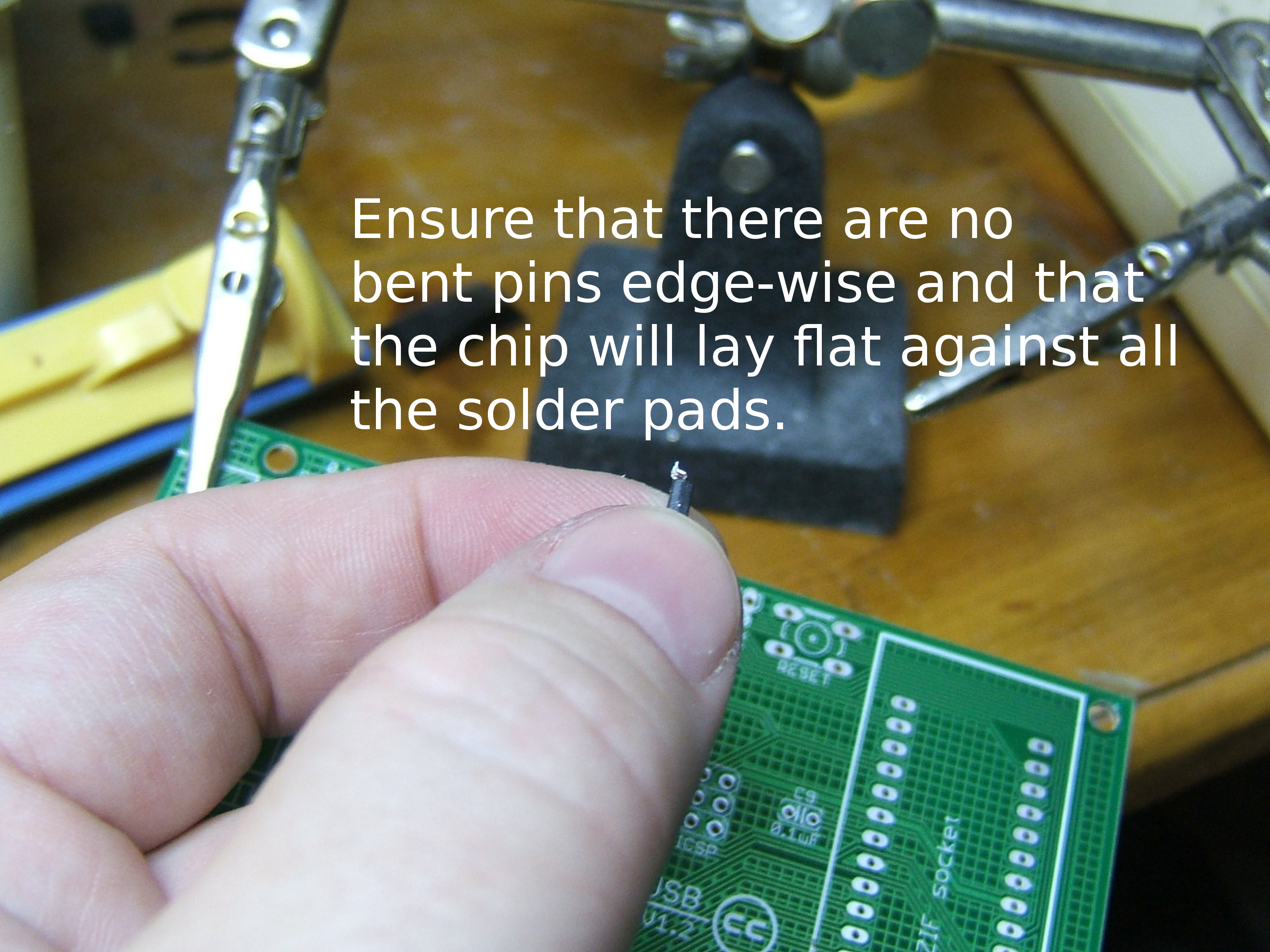

Checking USB chip's pin alignment.
|

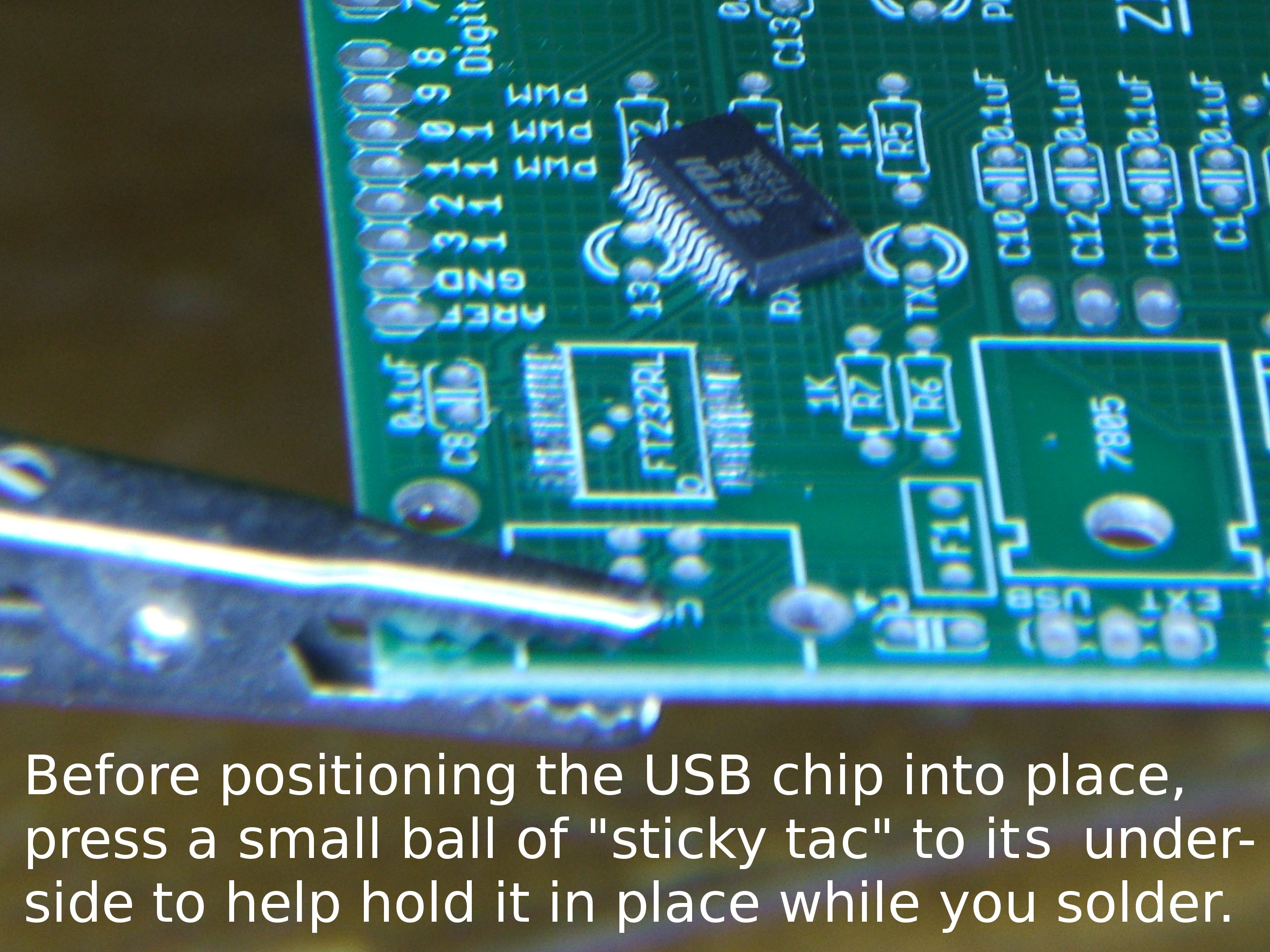

Sticking the chip in place.
|

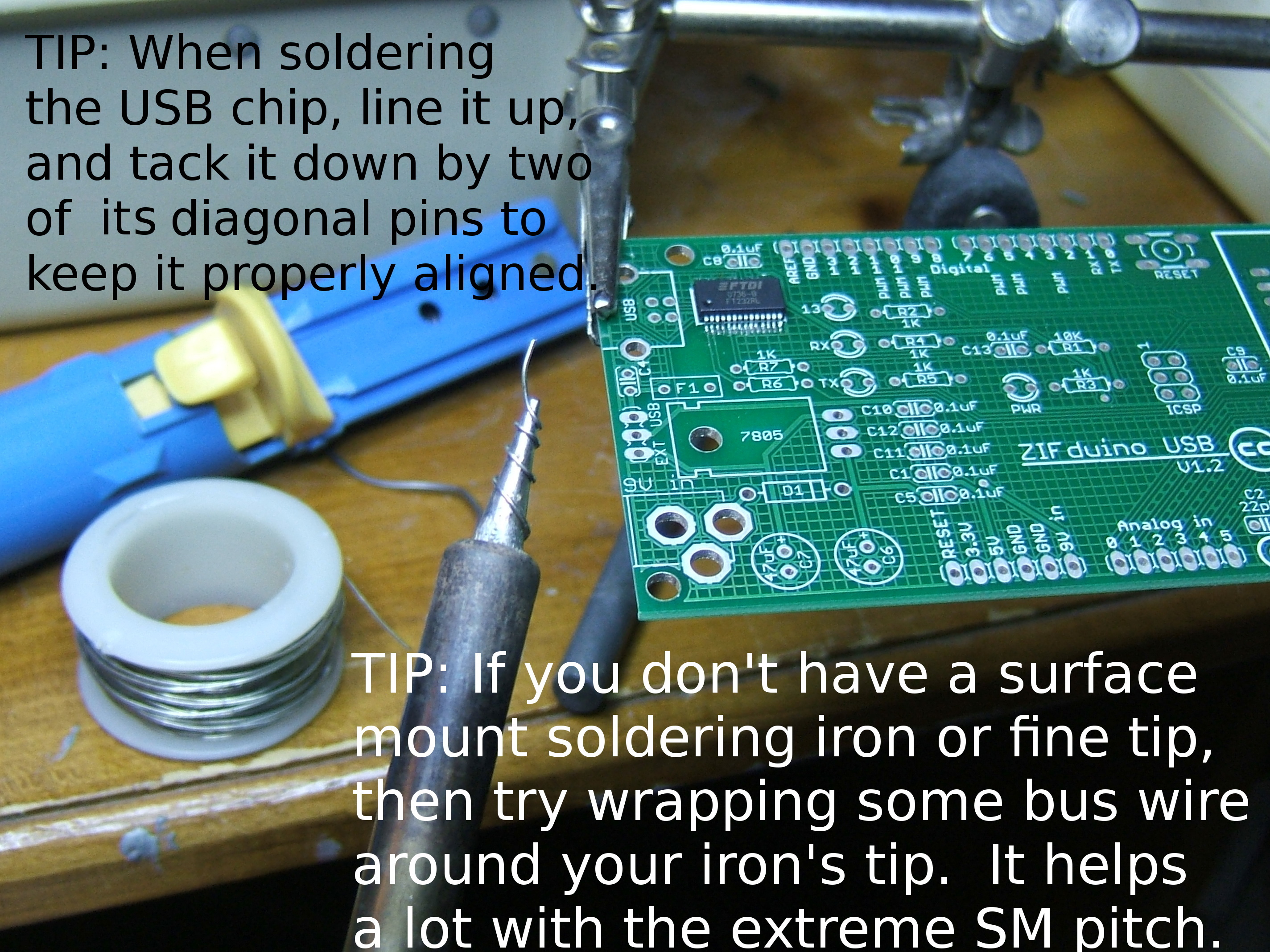

Tips for surface mount soldering.
|
Final USB chip checks.
|
Just pay the $5 and have them do the USB chip for you.
|
Component stuffing...
|
Clipping back leads.
|

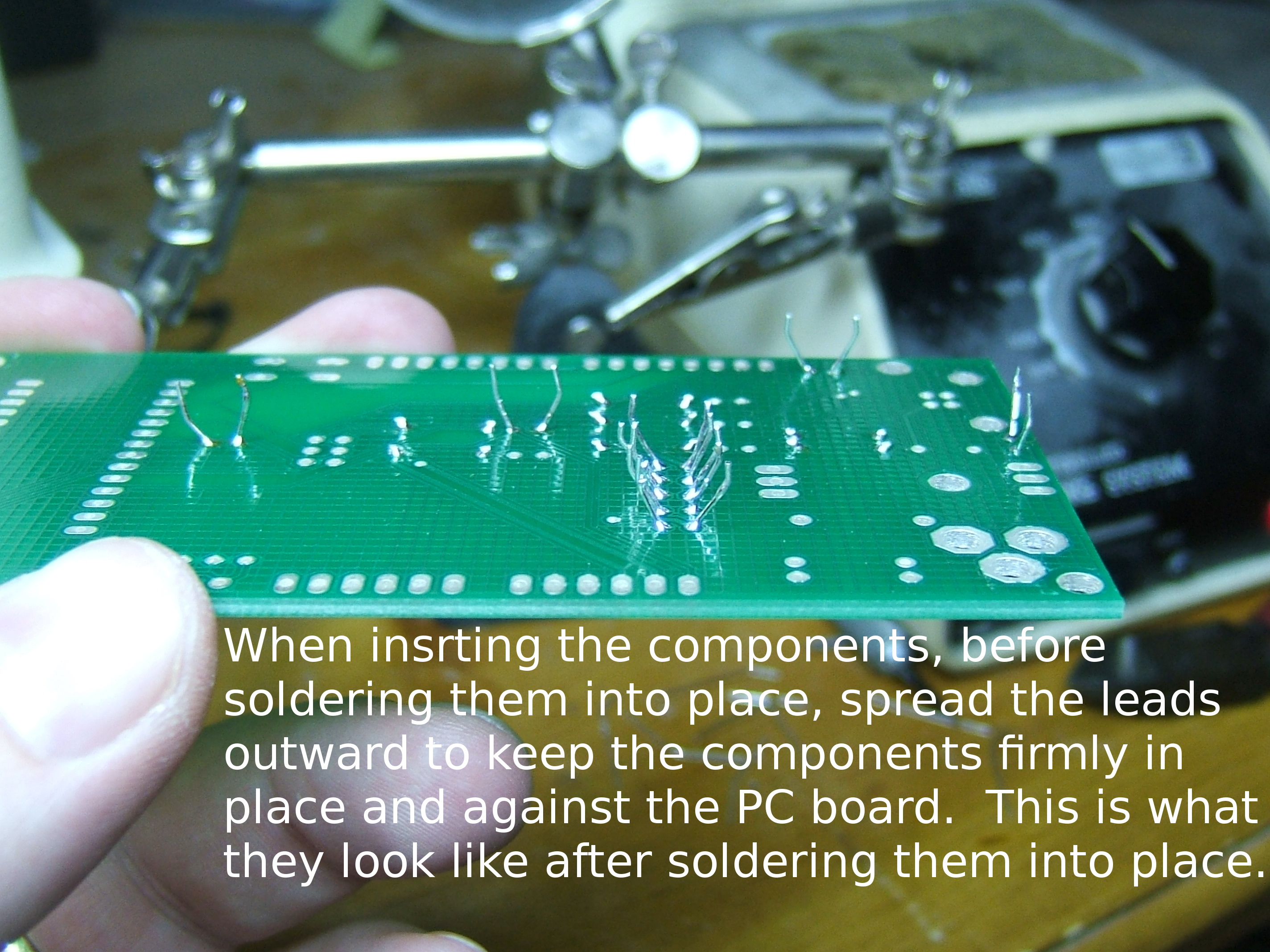

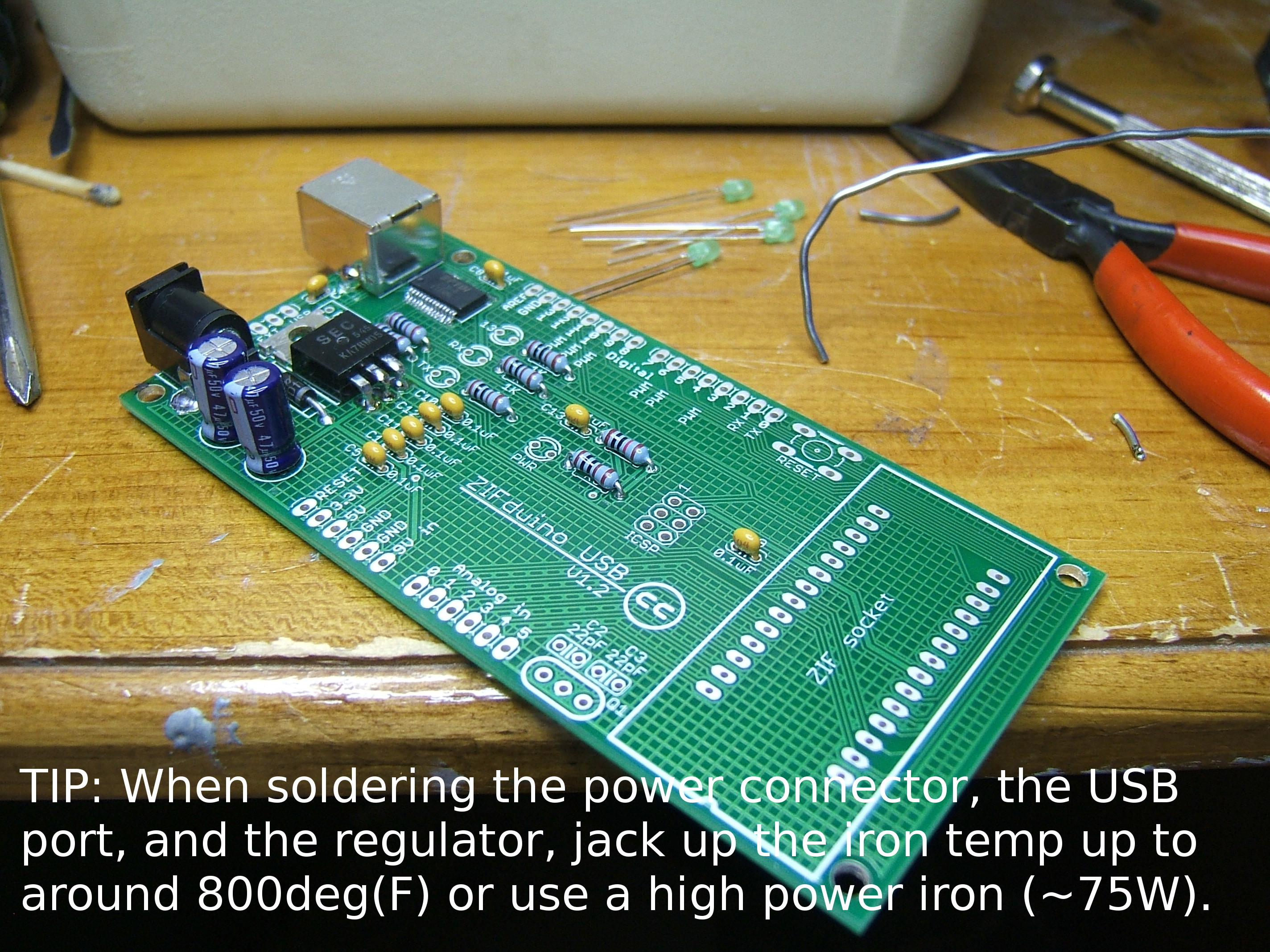

Soldering tip for larger components.
|
Using custom LEDs.
|

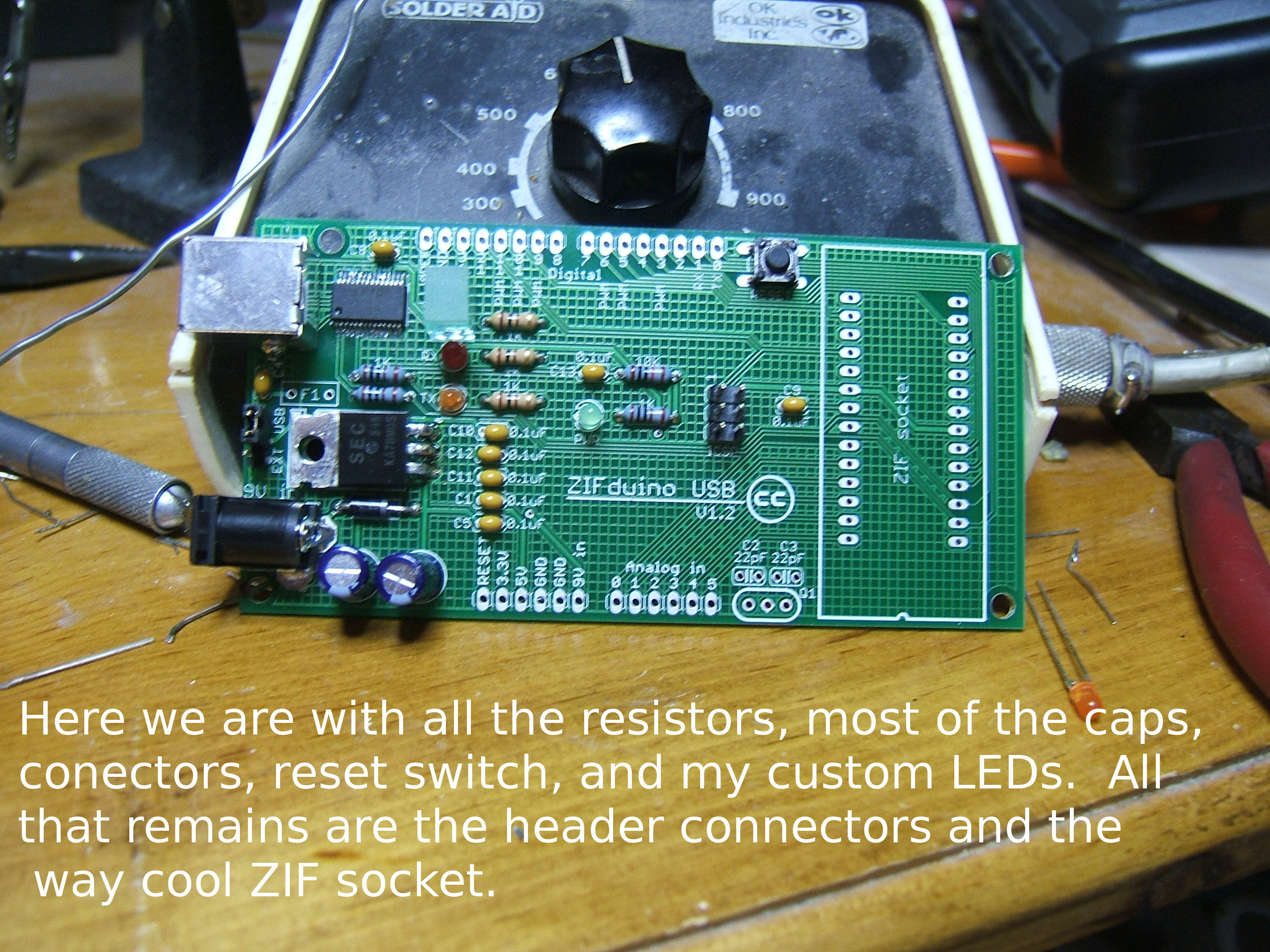

Everthing installed but the headers, ZIF socket and clock.
|

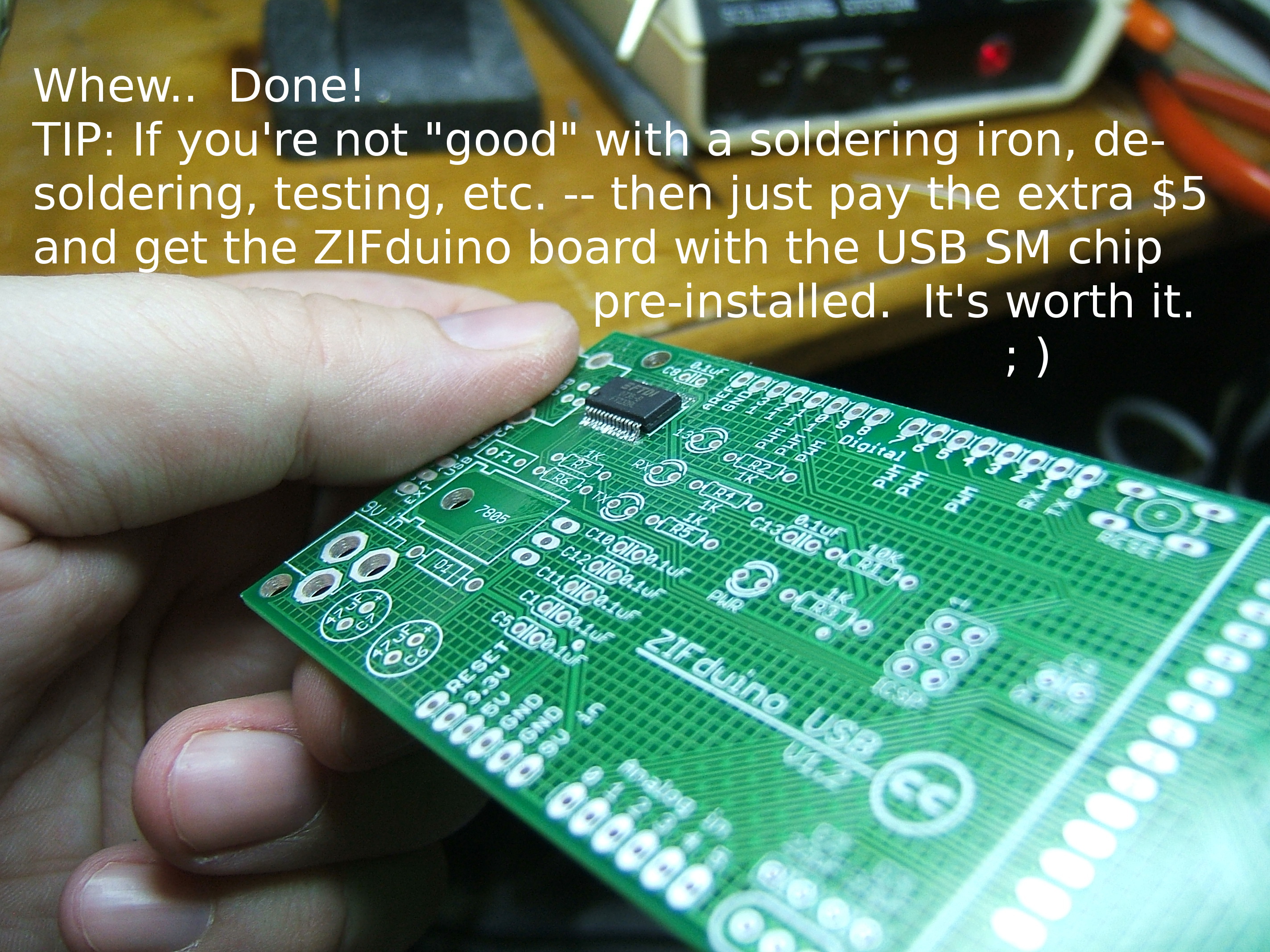

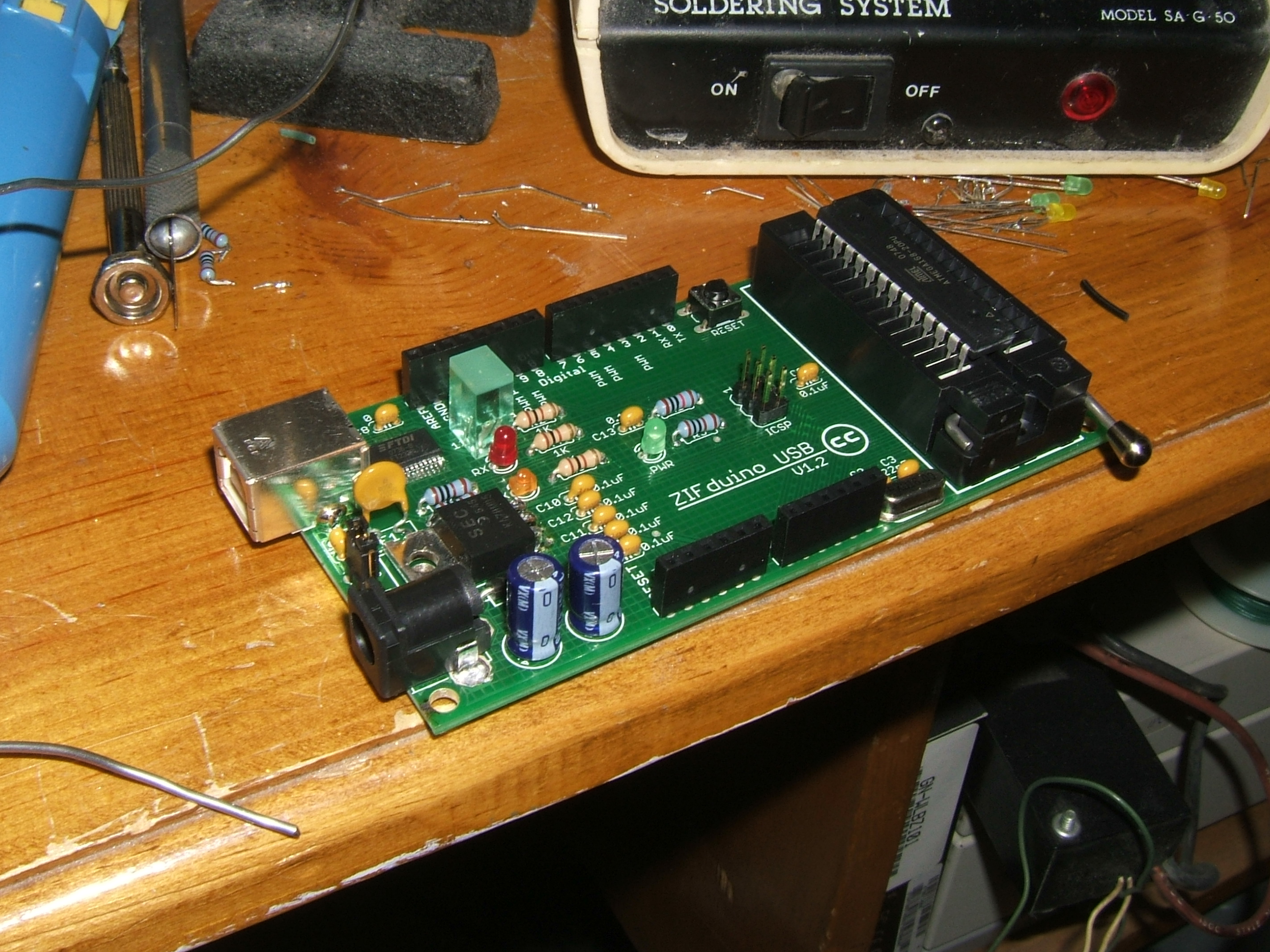

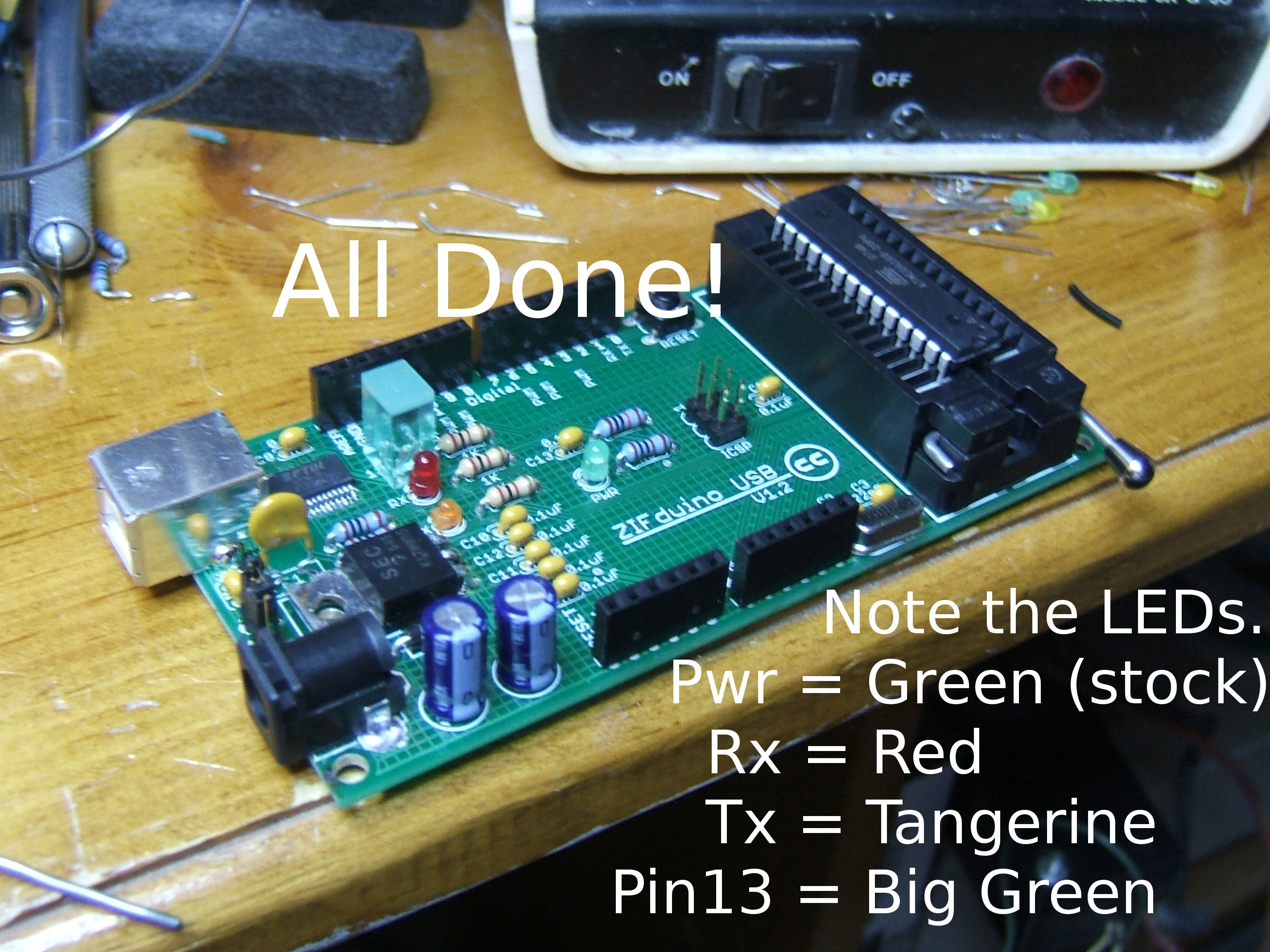

All Done!
|
Glamor Shot.
|

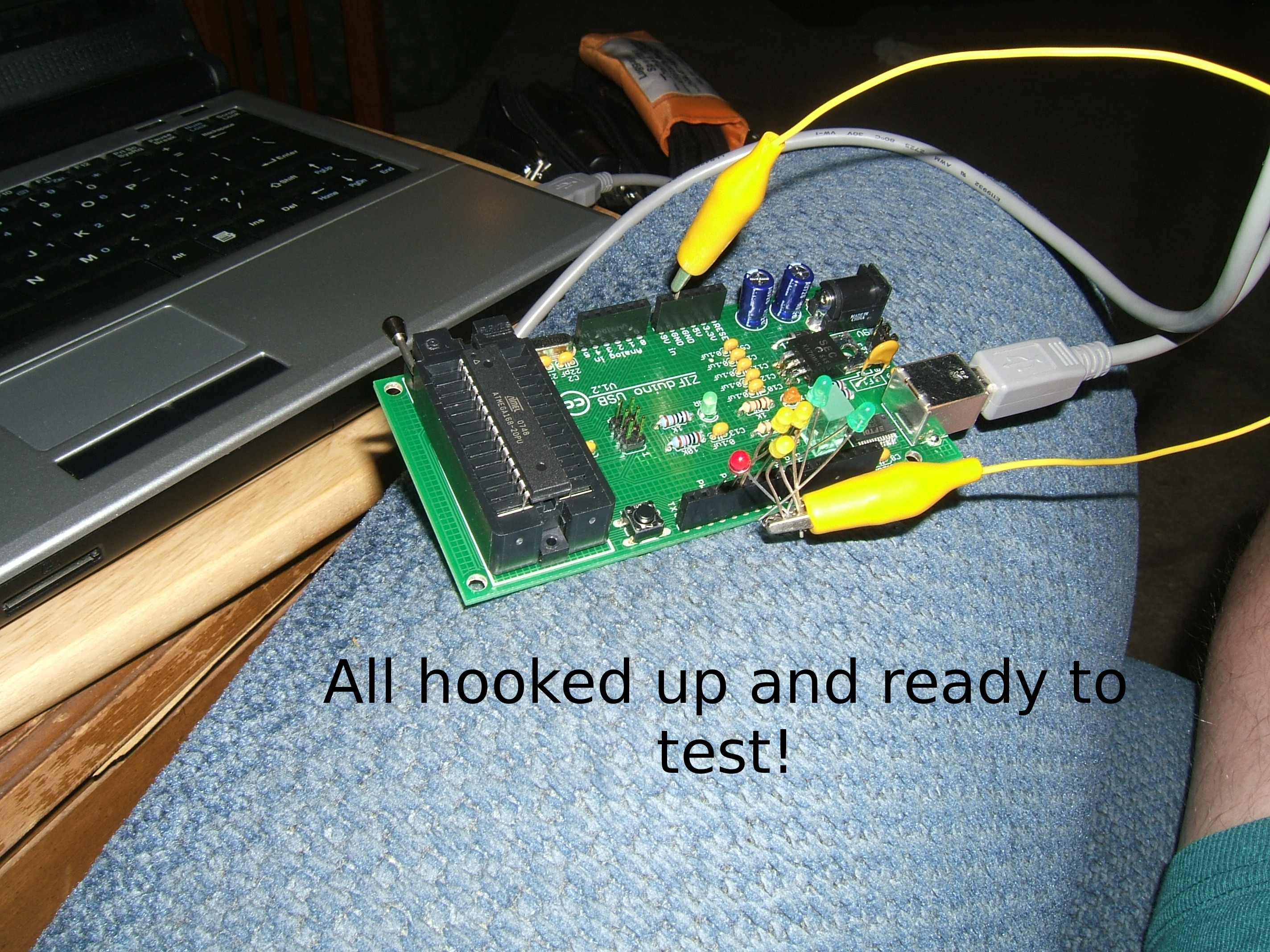

Ready to test!
|
VIDEO: Demo of compiling, uploading and running "blinky light" code.
|
VIDEO: blink... blink... blink...
|
